perma AU
Accessories

Fittings cases

Various fittings cases are available to provide a convenient and economical option for on-site spares. The themed cases include carefully selected reducing adaptors, extensions and elbows. The cases have a heavy duty plastic construction with an integrated water seal, removable compartments, impact resistant lid and heavy duty latches. The tables below list the parts included in each fittings case option. If different combinations are required please contact your supplier of perma products to investigate the supply of a customised option.

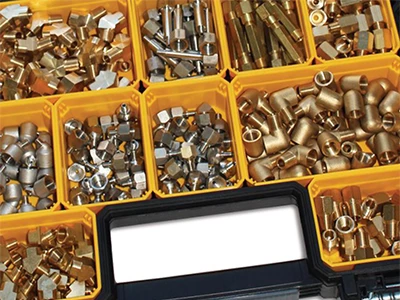

FCGEN220 Includes the most commonly used fittings for perma STAR VARIO
Art. No.: FCGEN220
More info

Content:

  • 20 x Support flange 1/4" BSPT M
  • 10 x Manual greasing kit 1/4" BSP
  • 20 x Hose end swivel 3/8" hose - 1/4" BSP M
  • 20 x Elbow 90 deg 1/4" BSPP F-1/4" BSPT M
  • 20 x Elbow 45 deg 1/4" BSPP F - 1/4" BSPT M
  • 30 x Adaptor brass 1/4" BSPP F - 1/8" BSPT M
  • 20 x Ext. 50mm 1/4" BSPP F - 1/8" BSPT
  • 20 x Ext. 50mm 1/4" BSPP F - M6x1.0M
  • 30 x Adaptor 1/4" BSPP F - M6x1.0M
  • 30 x Adaptor 1/4" BSPP F - 1/4" UNF M
FCBSP Primarily brass BSP fittings plus stainless steel reducers to M6 x 1.0 and 1/4" UNF
Art. No.: FCBSP240
More info

Content:

  • 30 x Adaptor 1/4" BSPP F - 1/4" BSPT M
  • 30 x Adaptor 1/4" BSPP F - 1/8" BSPT M
  • 40 x Elbow 90 deg 1/4" BSPP F - 1/4" BSPT M
  • 40 x Elbow 45 deg 1/4" BSPP F - 1/4" BSPT M
  • 20 x Elbow 45 deg 1/4" BSPP F - 1/8" BSPT M
  • 15 x Ext. 50mm 1/4" BSPP F - 1/8" BSPT
  • 15 x Ext. 40mm 1/4" BSPP F - 1/4" BSPT M
  • 10 x Ext. 50mm 1/4" BSPP F - M6x1.0 M
  • 20 x Adaptor 1/4" BSPP F - M6x1.0 M
  • 20 x Adaptor 1/4" BSPP F - 1/4" UNF M
FCMETRIC230 Primarily adaptors from metric to 1/4" BSPF plus BSP elbows and extensions
Art. No.: FCMETRIC230
More info

Content:

  • 30 x Adaptor 1/4" BSPP F - M6x1.0 M
  • 20 x Elbow 45 deg 1/4" BSPP F - M6 x 1.0 M
  • 15 x Ext. 50mm 1/4" BSPP F - M6x1.0 M
  • 25 x Adaptor 1/4" BSPP F - M8x1.0 M
  • 20 x Adaptor 1/4" BSPP F - M8x1.25 M
  • 20 x Adaptor 1/4" BSPP F - M10x1.0 M
  • 20 x Adaptor 1/4" BSPP F - M10x1.25 M
  • 20 x Adaptor 1/4" BSPP F - M10x1.5 M
  • 20 x Ext. 40mm 1/4" BSPP F - 1/4" BSPT M
  • 40 x Elbow 90 deg 1/4" BSPP F - 1/4" BSPT M
FCSS250 Includes a range of stainless steel fittings
Art. No.: FCSS250
More info

Content:

  • 20 x Adaptor 1/4" BSPP F - M6x1.0 M
  • 20 x Elbow 45 deg 1/4" BSPP F - M6 x 1.0 M
  • 10 x Ext. 50mm 1/4" BSPP F - M6x1.0 M
  • 20 x Adaptor 1/4" BSPP F - M8x1.0 M
  • 20 x Adaptor 1/4" BSPP F - M10x1.0 M
  • 30 x Adaptor 1/4" BSPP F - 1/4" UNF M
  • 20 x Adaptor 1/4" BSPP F - 1/8" BSPT M
  • 30 x Grease nipple 1/4" BSPT M
  • 40 x Nipple 1/4" BSPT M - 1/4" BSPT M
  • 40 x Round socket 1/4" BSP

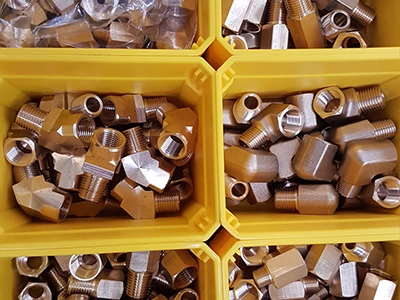

FCSBSP130 Includes a range of brass fittings
Art. No.: FCSBSP130
More info

Content:

  • 30 x Adaptor 1/4" BSPP F - 1/4" BSPM
  • 30 x Adaptor 1/4" BSPP F - 1/8" BSPM
  • 20 x Elbow 90 deg 1/4" BSP
  • 20 x Elbow 45 Deg 1/4" BSPF - 1/4" BSPM
  • 10 x Extension 85mm 1/4" BSP
  • 20 x Extension 40mm 1/4" BSP
FCSCOMBO160 Includes a range of brass fittings
Art. No.: FCSCOMBO160
More info

Content:

  • 30 x Adaptor 1/4" BSPP F - 1/4" BSPM
  • 30 x Adaptor 1/4" BSPP F - 1/8" BSPM
  • 20 x Elbow 90 deg 1/4" BSP
  • 20 x Elbow 45 Deg 1/4" BSPF - 1/4" BSPM
  • 20 x Straight Adaptor 1/4" BSPF - 8mm M
  • 20 x Straight Adaptor 1/4" BSPF - 10mm M
  • 20 x Extension 40mm 1/4" BSP
